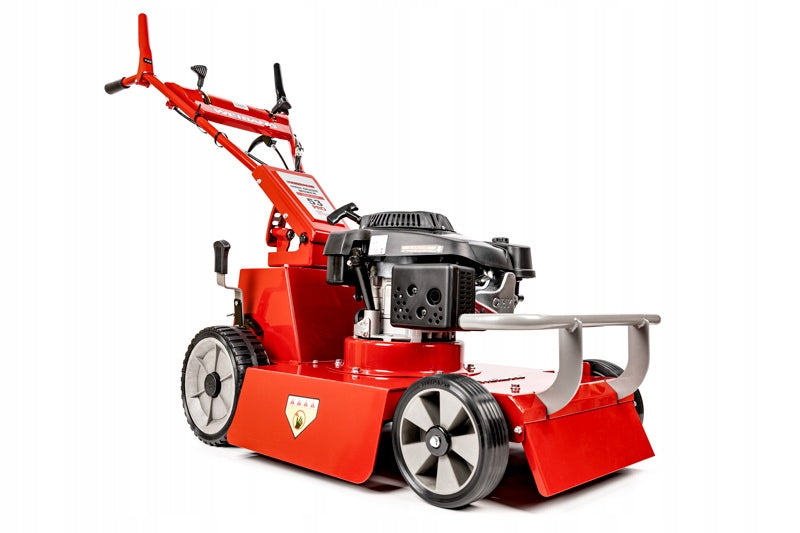

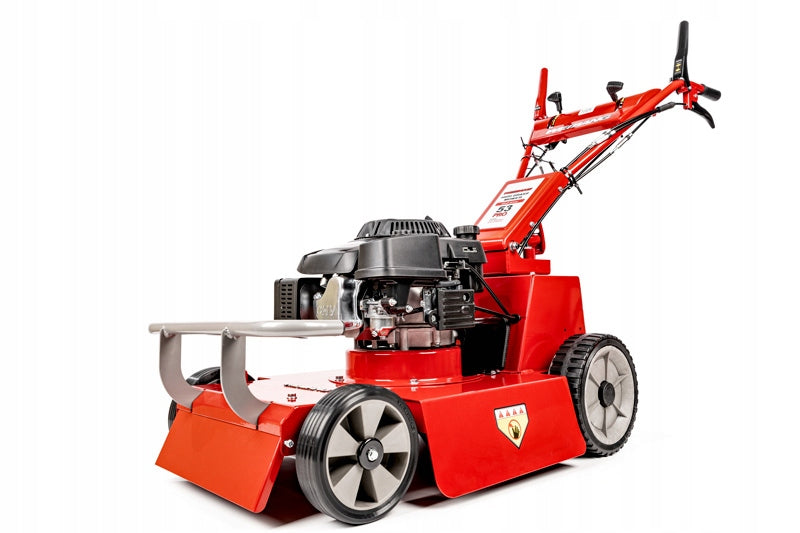

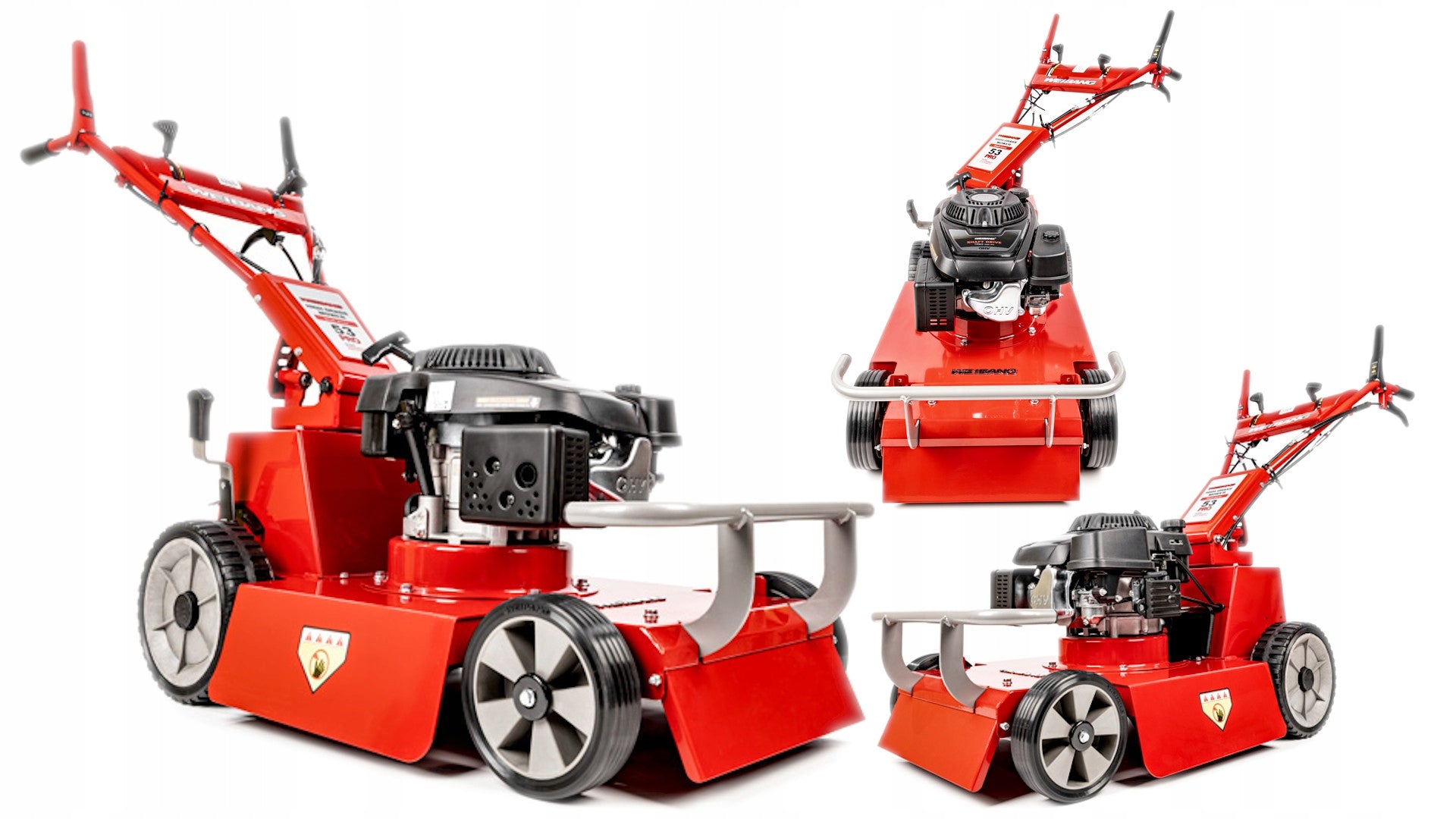

Žoliapjovė WEIBANG WBBC537SCV, 53 cm, dyzelinė, reguliuojama eiga, Loncin LC1P70

Trumpai apie prekę

Prekė: Žoliapjovė WEIBANG WBBC537SCV, 53 cm, dyzelinė, reguliuojama eiga, Loncin LC1P70. Kategorija: Benzininės vejapjovės.

• Gamintojas: Weibang
• Modelis: WBBC537SC V
• Galia: 3.4 kW

Product from the official distribution of Cedrus

Polish company, which since 1993 is a manufacturer / importer of equipment for forest, garden and construction.

WBBC 537 SCV Diesel mower WEIBANG

This is a novelty in the offer of Weibang, it is a mulching mower designed for mowing wastelands, and at the same time cheap in relation to the prices of flail mowers

It is especially useful in orchards and meadows. With a cutting width of 530 mm, the mower is able to mow large areas quickly and efficiently1. It is equipped with a powerful drive and a 3-speed gearbox, which ensures better adaptability to various types of terrain. The ability to choose the gear allows you to adjust the speed of driving to the conditions on the terrain and the type of vegetation

The WBBC537SC V is equipped with a professional Loncin combustion engine with a capacity. 196 cm3 is designed for mowing lawns with an area of up to 3000m2. The 3-speed professional transmission combined with the transmission through the cardan shaft makes it a mower designed for the toughest tasks.

Weibang mower with roller drive transfer

The Weibang diesel mower is designed for mowing grass on an area of up to 3000 m2, thanks to its large mowing width it is able to cover large areas at a fast pace. The service life of the transmission is specified at approx. 600-800 hours

Chassis and handle of mower

• Professional 3-speed gearbox, metal gears allow you to work in difficult conditions
• Patented drive shaft, more reliable and durable
• Central control panel
• Extremely durable transmission

The steering wheel can be adjusted, very massive wheels with aggressive tread on the drive wheels allow you to work in difficult terrain: The mower as standard is equipped with a side ejection, and a mulching cap

The cutting blades are designed to work in the toughest conditions:

Patented drive transmission transmitting the drive by roller instead of belt

Specially designed for this model cutting knife clutch:

The drive wheels are equipped with aggressive tread, the rear wheels are adjustable on 1 axis in the range of 15-90mm, the front wheels have independent height adjustment.

Rubber apron protects the operator:

The steering wheel can be adjusted both horizontally and vertically:

Also equipped with a massive bumper:

Weibang Garden Machine was founded in 1997 in Yangzhou, China, a famous city with a thousand years of history and great culture.

Weibang specializes in the production of professional gardening machines, which include lawn mower, ZTR lawn mowers, rakes, shredders, splitter, grinder, excavator, etc. These products are distributed in more than 30 countries around the world. Weibang is one of the leading manufacturers of garden equipment creating devices with the main focus for demanding customers with professional commitment.

This brand comes out of stereotype Chinese = poor quality,

The machines of this company have been appreciated by both amateur and professional users around the world.

Technical data:

• Brand: Weibang
• Engine manufacturer: Loncin
• Engine model: 1P70
• Engine capacity in cm³: 196
• Usable power of the device: 3,4 kW
• Working width in cm (cutting width): 53
• Rotation of cutting blade per min: 3600
• Cutting blade type: Mulching knife
• Number of cutting blades: 1 but with 4 cutting edges
• Attachment of the cutting blade: Hub with friction washers to protect the shaft from curvature
• Wheel drive: Yes 3 stage rear wheels in the range of 1 beg 2,45km/h, 2 gear 3,02km/h, 3 gear 3,67km/h
• Method of transmission: Roller
• Front/rear wheel size: 20 cm / 26,25 cm
• Wheel Bearings: Yes
• Housing material: Steel
• Mowing height adjustment: Rear wheels 6 degrees , front wheels independent adjustment
• Mowing height adjustment range in mm: 15-90
• Basket capacity in liters: None
• Basket material: Not applicable
• Functions as standard: Mulching
• Net weight in kg: 75,4
• Noise level: 100 db
• Recommended max working surface m²: 3000
• Dimensions when folded in mm L/W/H: 1594x605x1107

Engine Features:

Loncin engine dedicated to Weibang devices, with large filter

LC1P70FC LONCIN Internal combustion engine description and advantages:

• 4-stroke 1-cylinder engine, air-cooled, OHV, EURO 5 combustion standard
• Very high power (up to 6,5HP at 3600rpm)
• Automatic suction - very easy start-up
• No actuation pump
• Cast iron cylinder sleeve
• Crankshaft Top Bearing
• Small combustion
• Dual air filtration system (Paper filter + preliminary sponge filter
• Manufacturer: Loncin
• Engine model: LC1P70
• Engine type: 1-cylinder, air-cooled OHV, gasoline
• Exhaust emission standard: Euro 5
• Engine displacement in cm³: 196 cm³
• Max engine power old conversion standard*: 4.8kW(6.5HP)/3600rpm
• Max engine power new conversion standard*: 4.0kW(5.44HP)/3600rpm
• Rotary torque: 12,0 Nm / 2500rpm
• Cylinder diameter x piston stroke: 70mm×51mm
• Lubrication: Splash
• Air filtration system: Double (paper air filter + sponge pre-filter)
• Start-up system: Manual - reverse cable
• Suction: Automatic
• Capacity of oil pan in litres: 0.6
• Capacity of fuel tank in litres: 1
• Net weight in kg: 12.8
• Dimensions (L. x Width x H. ) in mm: 385×358×278

* The current engine power conversion standard is carried out with the silencer and air filter installed, therefore the currently reported engine powers are lower than previously reported, the engines have not changed.

The delivery includes:

1 x Complete device given in the header of the offer with equipment described in the description and technical data, and all accessories that the manufacturer normally attaches, (type of keys for mounting, for unscrewing the candle, etc.)

1 x User Manual

1 x Warranty Card

1 x Selected Sales Document

Delivery does not contain the oil necessary to start it, you can buy it by choosing from the above offer buy together

The oil bowl capacity of this engine is 0,5 liters

We recommend 1 oil change up to 5 hours of operation (the sooner the better), next replacements according to the instruction manual

Due to the weight and for the safety of the transport mower, this model is shipped on a half pallet
